Leica Rugby 620 Premium Kit

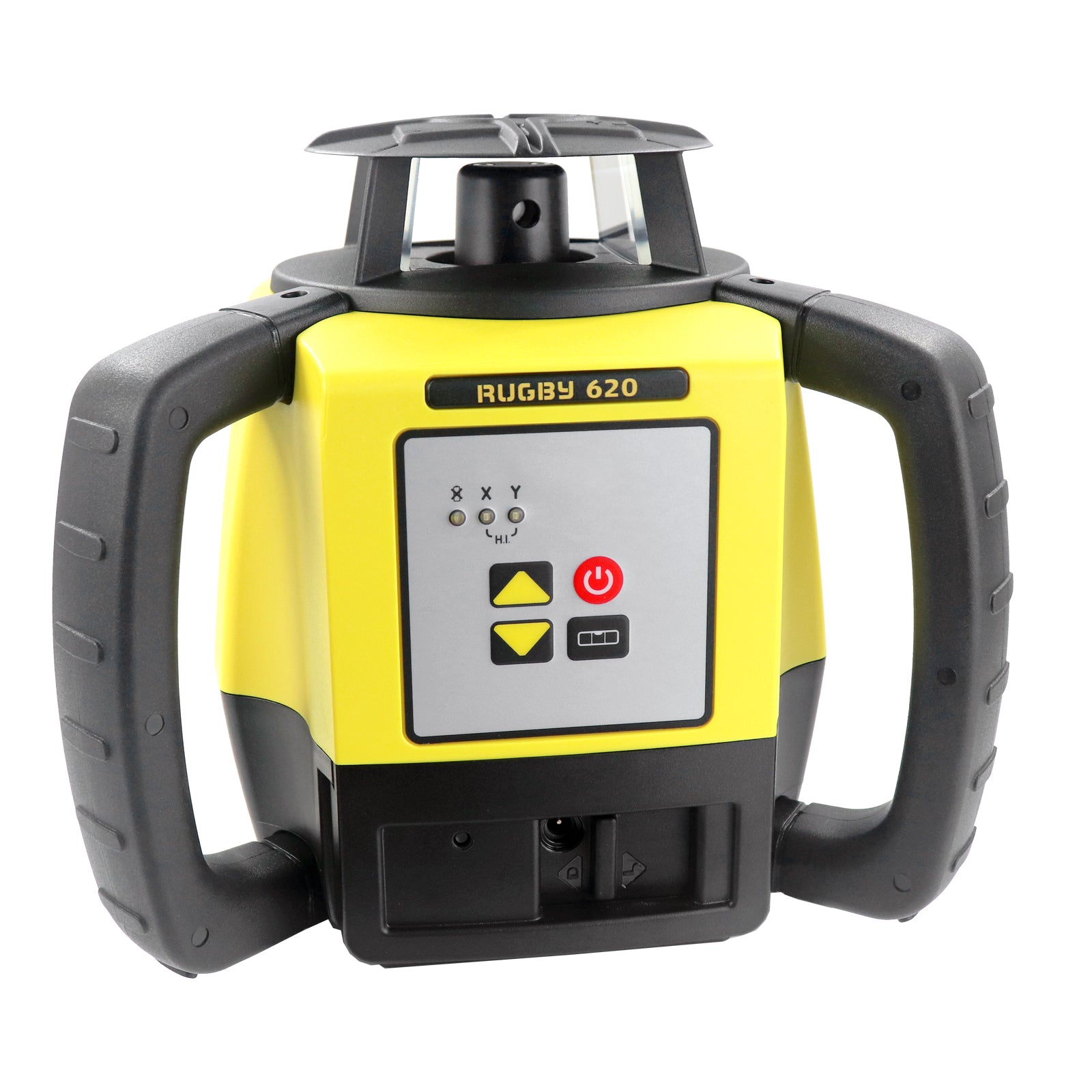

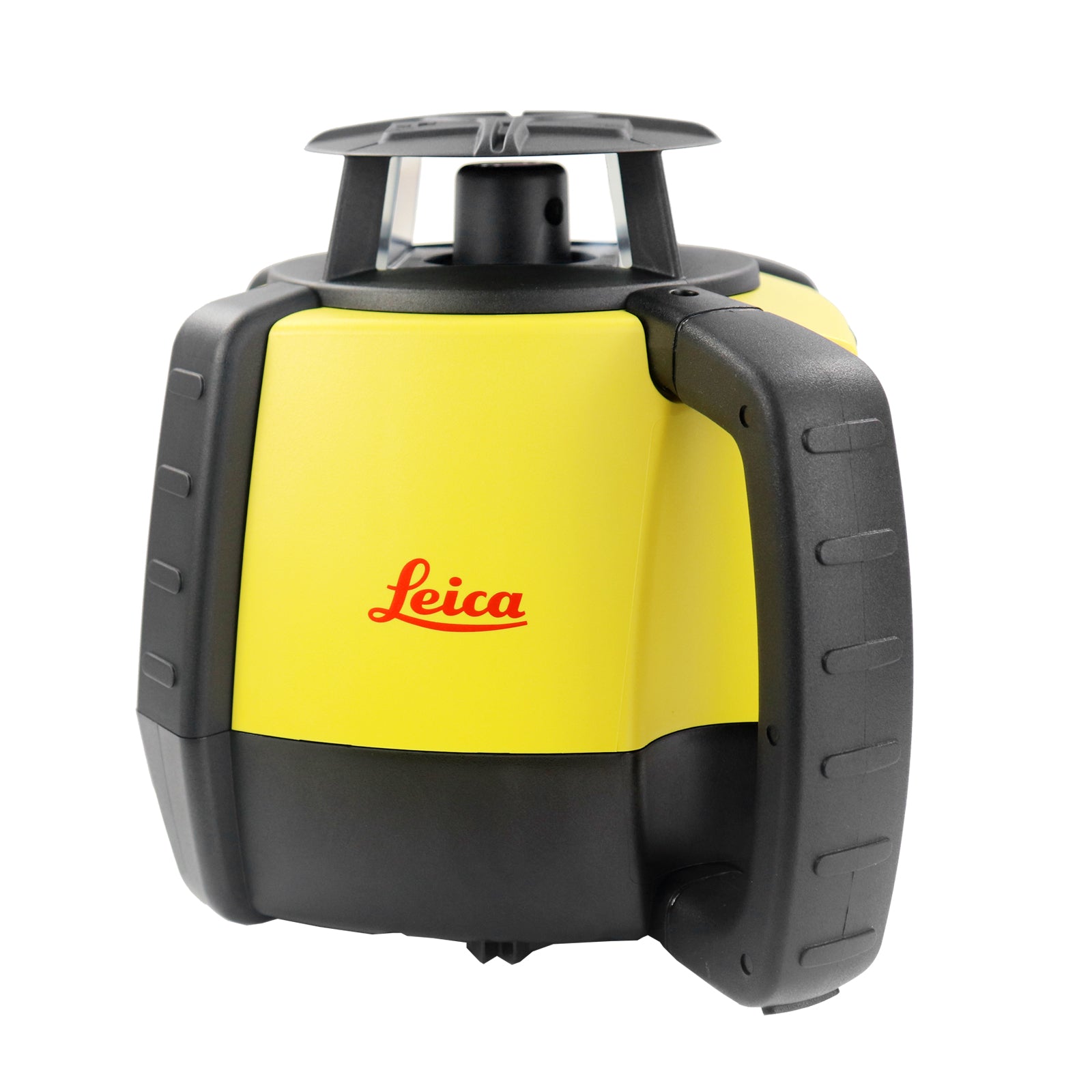

The Leica Rugby 620 Premium Rotary Laser Level features a very durable housing that provides superior drop and weather protection. A very high level of dust/water protection to IP67 (Dust tight & protected against submersing in water up to 1m deep without damaging the instrument) makes the Rugby 620 suitable for the most demanding of worksites.

The Rugby 620 fully automatic, horizontal with manual grading, self-levelling capability provides fast, accurate setup; with just one button press. It has a very high accuracy rating of +/-1.5mm @ 30m with a max. working diameter of 1,100m.

The User can set manual grades (slopes) in the X-axis or Y-axis up to 8%, OR both X & Y axis together ie. manual DUAL grading.

The included, powerful Lithium battery pack or optional alkaline batteries with cradle, keeps the unit working with no downtime, due to power loss.

The Rugby 620 is matched with Leica’s superior Rod Eye RE160 digital (mm) detector with five sensitivity settings to suit all site conditions.

Features

Operating diameter of 1,100m with supplied RE160 detector

Increases productivity with fast set-ups, fewer mechanical parts, and automatic self-levelling

Maintains performance even in rainy, dusty and other harsh job site and weather conditions

Durable design reduces downtime due to drops and tripod tip-overs

Minimizes power costs, increases reliability with included rechargeable or optional alkaline batteries & cradle.

Specification

Rugby 620 Laser Specifications:

Laser Source: 635 nm (red), Class 1.

Laser Accuracy: ±1.5 mm at 30 m

Laser Operating Range: 1,100m diameter (with RE160 detector)

Self-leveling Range: ±5 degrees

Manual grading in the X-axis or Y-axis up to 8%, OR both together ie. manual DUAL grading

Compensation Method: Electronic self-leveling

Out-of-level Warning: Rotor stops, out-of-level LED flashes

Power Source: Lithium 5,000mAh (Li-ion)

Battery Life: Rechargeable - 40 hours

Low Battery Status LED: Flashing LED

Rotation Speed: 600 RPM

Tripod Mount (Horizontal only): 5/8” x 11

Operating Temperature: -10 °C to 50 °C

Water Resistant: Yes, IP67

Size: 19L × 24W × 21H cm

Weight: 2.4 kg with fitted lithium battery

Warranty: 5 Years

Detector features

Kit includes Rod Eye RE160 Detector & Bracket:

Dual LCD’s on front and rear are ideal for general outdoor applications

Fine or standard accuracy fits all application needs.

Strong waterproof housing (IP67) protects the unit from dust, moisture and accidental drops

Loud 100 dBA speaker can be heard on the nosiest job site.

Five On-Grade Sensitivities: Very Fine +/-0.5mm, Fine +/-1mm, Medium +/-2mm, Coarse +/-3mm, Very coarse +/-5mm

LCD Channels: 5

Red pick-up window height: 120mm

Numeric readout height: 90mm

Automatic Shut-off: 30 minutes

Dust & Waterproof: IP67

Weight: 0.6kg with bracket

Warranty: 1 Year

Technical specification

Accuracy:

+/- 1.5mm @ 30 metres, max. operating diameter 1,100m (550m either side of the instrument).

An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres. This laser level is 10x more accurate.

Dual Grade facility accessed via laser’s keypad:

Dual axis: X and Y axis up to +/-10% (1 in 10)

Both the X & Y axis can be set to give a maximum fall of up to 1m at 10m distance away. (ie. 1 in 10 & +/-10% grade)

The User can only set grades from the laser's keypad. There is no option to use a remote control.

To set grades greater than 10%, use an optional Manual Grade Adapter.

Example usage

General horizontal elevation control

Checking and setting elevations

Framework levelling

Levelling forms and footers

Pad placement

General concrete pours

Estimating cut and fills

Excavations

Manufacturers data

Leica Geosystems 5 Year - No Cost - WARRANTY is included

This Rugby 620 Laser Level is covered by a new "5-Year - No Cost" Warranty which covers all defects due to material and workmanship.

Please note: The RE160 Detector, Tripod & Staff are not covered by this Warranty. Please see individual product listing for their respective warranty period.

Also included in the kit

The Leica Rugby 620 Premium Kit also includes the following accessories:

4m Telescopic Levelling Staff (Model: TLS4S)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Do you need ShockWatch® adding to your Laser?

The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.

For further details of ShockWatch®, please Click Here.

Need to mount a Detector on Plant equipment?

The Rugby 620 can be used for machine control by using a magnetic Spectra CR700 Detector, which can be purchased as an "upgrade" or as an optional extra.

For further details of the Spectra CR700, please Click Here.

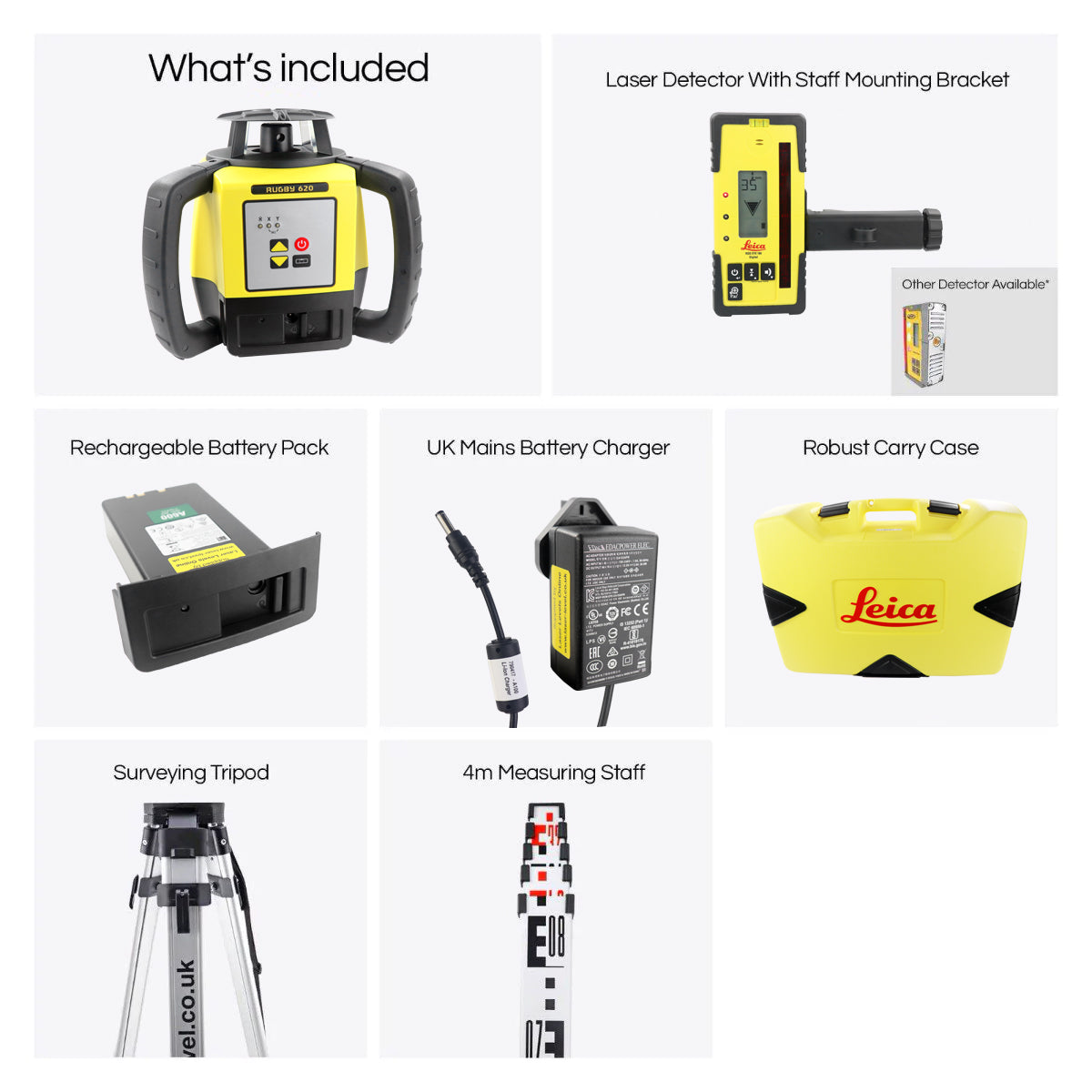

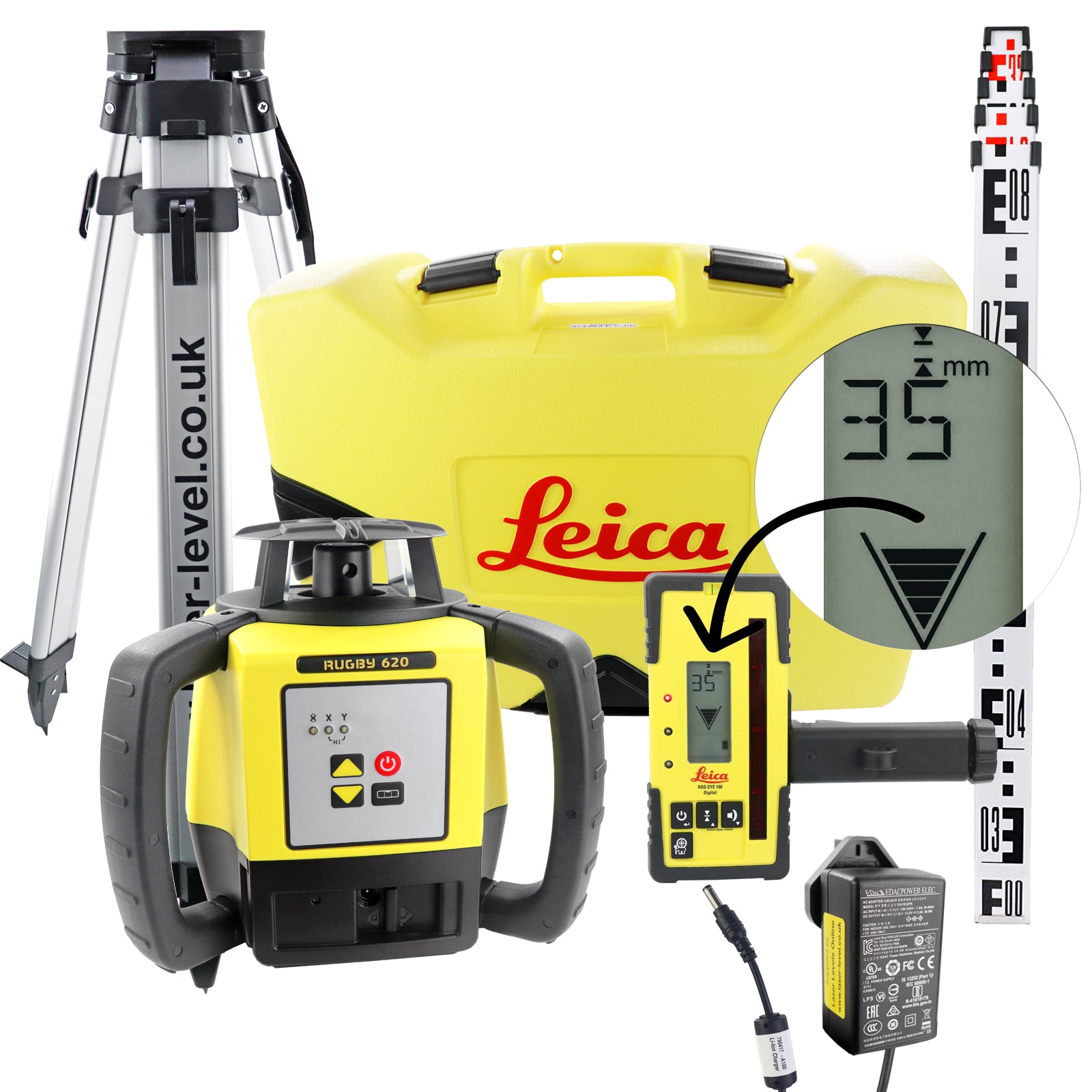

Kit comprises of

Leica Rugby 620 Rotary Laser Level (checked and pre-calibrated)

Rod Eye RE160 Laser Detector with Staff Mounting Bracket & 2 x AA alkaline batteries

(Option to upgrade to magnetic Spectra CR700 detector for machine control)

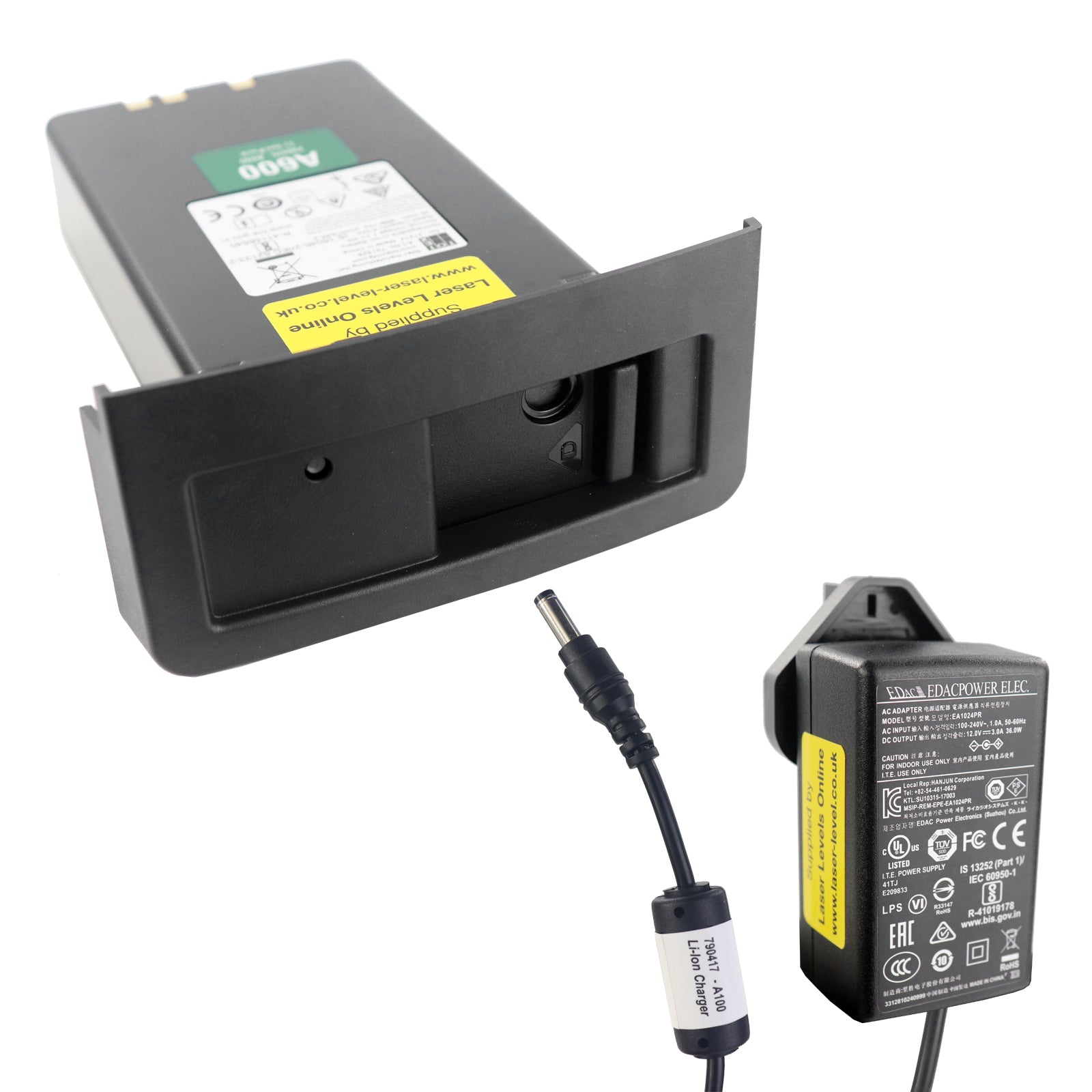

Rechargeable Battery pack, 5,000mAh Li-ion

Worldwide Mains Battery Charger, A100 Li-ion

Surveying Tripod, type S-LAT

4m Measuring Staff, type TLS4S

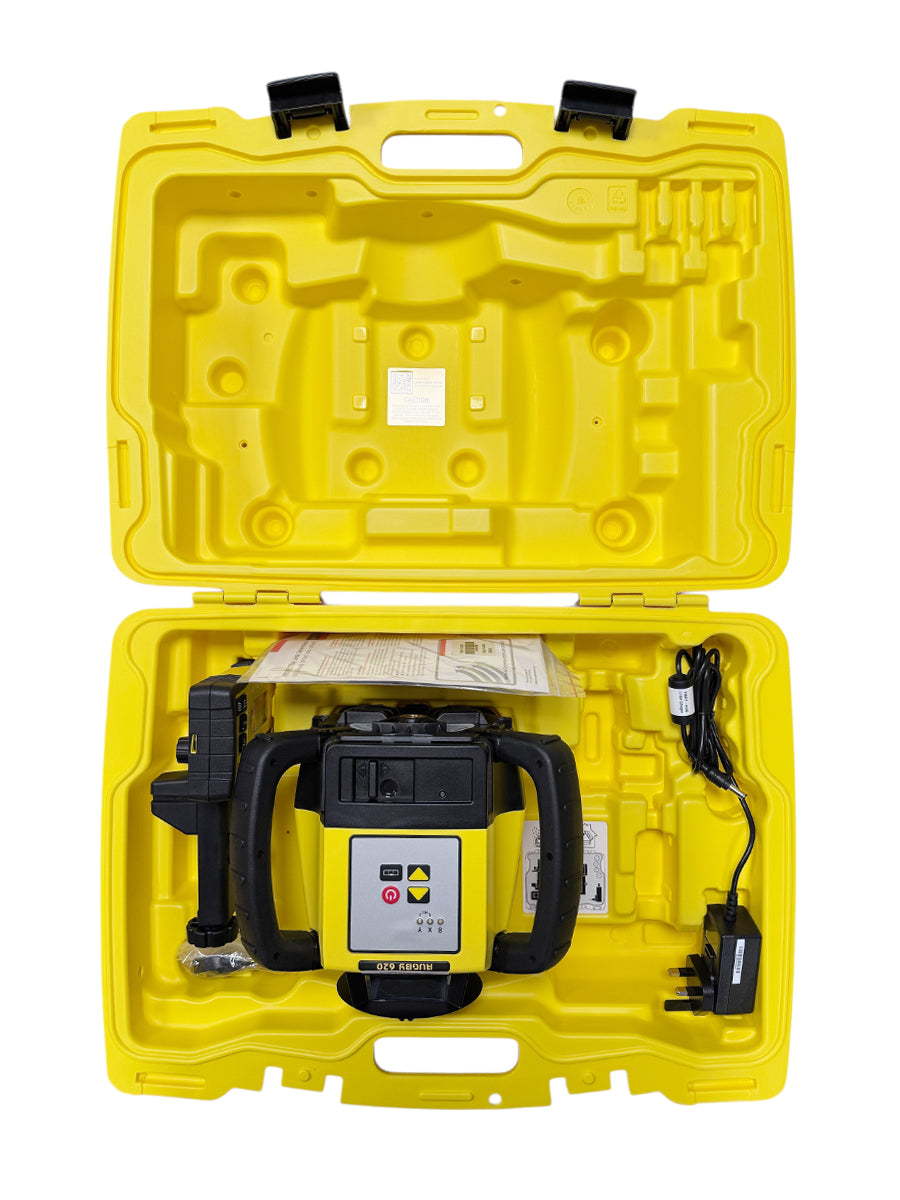

Robust Carry Case

Quick User Guide & Safety Manuals

Full 5 Year Automatic Warranty
